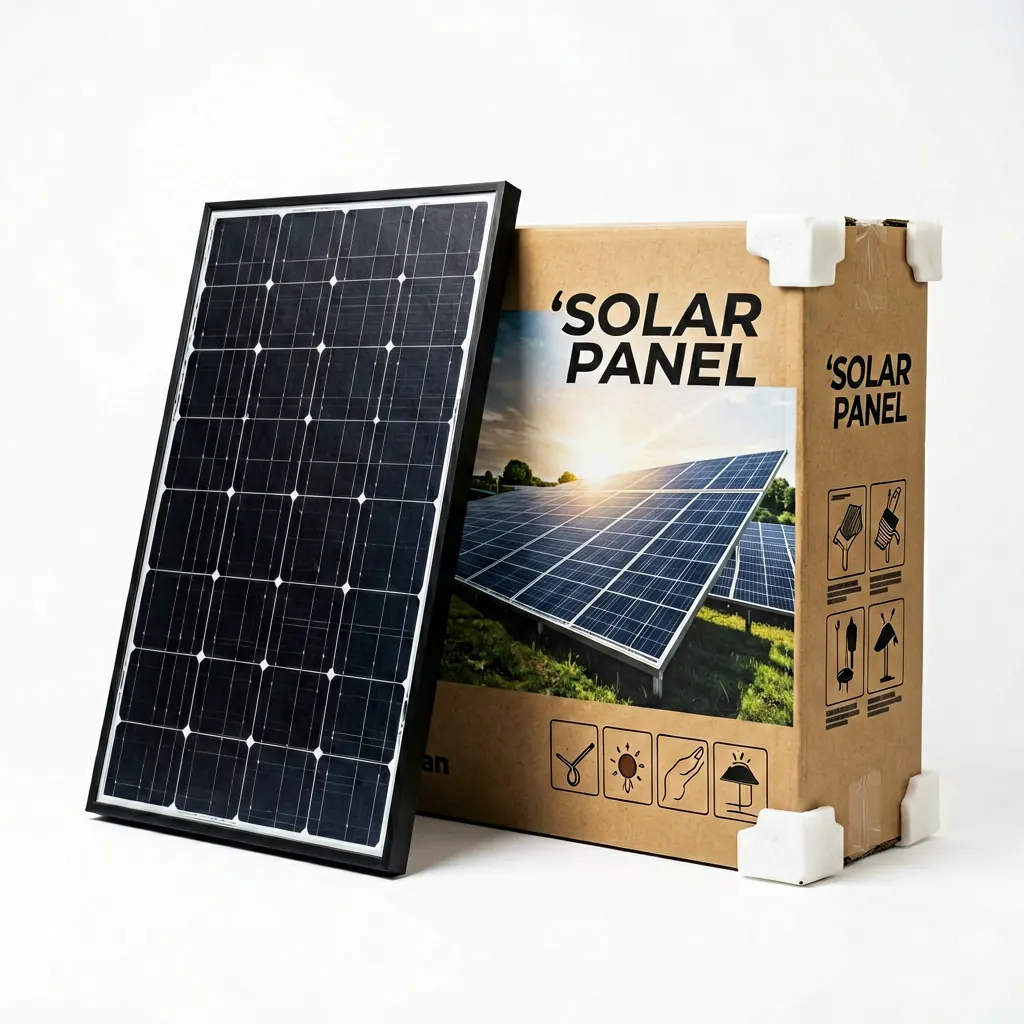

Engineered for residential and commercial solar panel shipments, our reinforced corrugated cartons protect fragile glass modules — tempered glass surfaces, photovoltaic cells, aluminum frames, and junction boxes — through international ocean and air freight. Built for bulk, OEM, and wholesale shipments from our Shenzhen factory.

Why Choose Our Solar Panel Packaging Boxes?

  • Fragile-Glass Protection: CNC-cut EPE foam cradles and edge protectors absorb shock and keep tempered glass surfaces from contacting the carton wall — zero scratching, zero micro-cracks.
  • Double-Wall Strength: BC or EB flute corrugated board (ECT 48–56) handles 20–35 kg panels without wall flex, even in 40HC container stacking.
  • Moisture Control: Anti-moisture inner lining plus silica gel desiccant sachets protect junction boxes and connectors from condensation during ocean transit.
  • ISTA 3A Drop Tested: Every configuration is validated against ISTA 3A transit simulation before bulk production.
  • Full-Color Branding: CMYK flexographic printing up to 4 colors on 2 × 1.4 m panels — your brand, your handling instructions, your compliance marks.

Technical Specifications

Material Double-wall Kraft Corrugated (BC / EB flute)
Board Grades ECT 48 / ECT 52 / ECT 56
Flute Options BC, EB, AB combinations
Max Print Size 2 × 1.4 meters (flexo up to 4 colors)
Internal Protection CNC-cut EPE / EVA foam cradles, corner edge protectors, anti-moisture lining, desiccant
Typical Box Sizes 1,750×1,130×120 mm (1 panel) to 2,300×1,200×250 mm (multi-panel bundle)
MOQ 100 pcs
Sample Lead Time 3 working days
Bulk Lead Time 15–25 working days
Testing Standards ISTA 3A / ISTA 6-FEDEX

Ideal for

  • Solar panel manufacturers and brands shipping to distributors and installers worldwide
  • Residential rooftop and commercial ground-mount project packagers
  • E-commerce sellers of portable and foldable solar kits
  • Energy storage and inverter distributors bundling panels with balance-of-system components

Custom Case: Export Packaging for a Residential Solar Panel Brand

A solar panel distributor in Germany needed export packaging for their new 440 W residential module line — a 1,755 × 1,095 × 30 mm panel weighing 22 kg, with a tempered glass face and a fragile junction box. They had been shipping in single-wall cartons with loose foam chips, resulting in a 1.8% glass damage rate and a costly warranty claim on an overseas container. We engineered a double-wall BC flute carton with CNC-cut EPE foam cradles that lock the panel vertically, dedicated corner edge protectors, and an anti-moisture lining with desiccant sachets for the junction box. The drawing was confirmed within 24 hours, a digital sample shipped in 72 hours, and the full 4,000-piece order delivered to Hamburg in 21 days with zero damage. The same engineering discipline — heavy-duty corrugated box factory precision applied to every solar panel packaging box we produce.

Protection Engineering for Solar Panel Transport

A solar panel is a large, flat, fragile product: tempered glass can shatter on point impact, photovoltaic cells develop invisible micro-cracks under flexing, and the junction box is vulnerable to moisture and vibration. Standard single-wall cartons flex under the 20–35 kg weight of a residential panel and provide no cushioning for the glass face. We build solar panel boxes from double-wall BC flute board (ECT 48–56) with CNC-cut EPE foam cradles that support the panel on its frame edges — never on the glass — plus corner edge protectors that absorb forklift and stacking impacts. Panels ship vertically (on edge) or flat with foam separators between units, and every configuration is drop-tested to double-wall vs triple-wall corrugated strength guidelines before production. For high-humidity routes, we add an anti-moisture barrier and desiccant to protect connectors and diodes.

Sampling: From Drawing to Your Door in 3 Days

You do not have to commit to volume to validate the packaging. The sample process takes three working days: first we confirm the structural drawing based on your panel dimensions, frame profile, and bundle configuration, then we produce a digital print sample for your approval, and finally we ship the physical sample to your door. Sample fees are refundable against bulk orders. The production mold used for your sample is the same one used for bulk — what you approve is what you get.

Export Logistics for Solar Panel Shipments

A standard residential solar panel carton (1,755 × 1,095 × 120 mm) fits approximately 150–200 cartons per 20ft container or 320–420 per 40HC, depending on panel thickness and foam configuration. For multi-panel bundles in larger cartons (2,300 × 1,200 × 250 mm), expect 80–120 per 20ft or 180–260 per 40HC. We provide container loading diagrams with every order, support LCL shared-container shipments from Shenzhen and Ningbo on weekly sailings, and offer DDP door-to-door delivery to North America, Europe, and Southeast Asia. Export documentation — commercial invoice, packing list, fumigation certificate — is included. For urgent project deadlines, we coordinate air freight directly with your forwarder.

Frequently Asked Questions

Can you customize the box size for my specific solar panel model?
Yes. Every solar panel packaging box is precision-cut to your panel's exact footprint, frame profile, and bundle configuration. Send us your panel dimensions (L × W × T) plus the number of panels per carton, and we will design the carton and foam cradle around them. Typical turnaround for a custom drawing is 24 hours.
What is the minimum order quantity for custom solar panel boxes?
Our MOQ is 100 pcs. This applies to custom sizes, printed designs, and foam insert configurations. For initial orders, we recommend starting with 100–500 pcs to validate the packaging before committing to larger volumes.
How long does sampling take?
3 working days from drawing confirmation. Day 1: structural CAD drawing. Day 2: digital print sample. Day 3: physical sample shipped to your door. Sample fees are refundable against bulk orders of 500+ pcs.
How do you protect the glass face and junction box during shipping?
We use CNC-cut EPE foam cradles that support the panel on its aluminum frame edges — never on the glass — with corner edge protectors for impact absorption. Panels ship vertically or flat with foam separators between units, and we add an anti-moisture lining plus silica gel desiccant sachets to protect the junction box and connectors from condensation during ocean transit. The system is drop-tested to ISTA 3A standards.
Can you print our brand logo and product information on the boxes?
Yes. We offer CMYK flexographic printing up to 4 colors on panels up to 2 × 1.4 meters. Common branding includes your logo, module specifications, handling instructions (this side up, fragile), barcodes, and compliance marks (CE, TÜV, UL). Print proofs are included in the sample process.
What is the typical production lead time for bulk orders?
15–25 working days after sample approval and deposit confirmation. Rush orders (10–15 days) may be available depending on board stock and print plate status. We recommend placing orders 6–8 weeks before your required shipping date to allow for production plus ocean transit.

Related Packaging Solutions

Get Your Custom Solar Panel Packaging Box Quoted Now

Send us your panel dimensions, wattage or model, glass type, mounting frame and stacking plan, plus your target volume and destination port, and we will come back with carton drawings, board grades and per-unit prices. MOQ 100 pcs per size, samples in 3 working days, bulk production in 15–25 working days.
